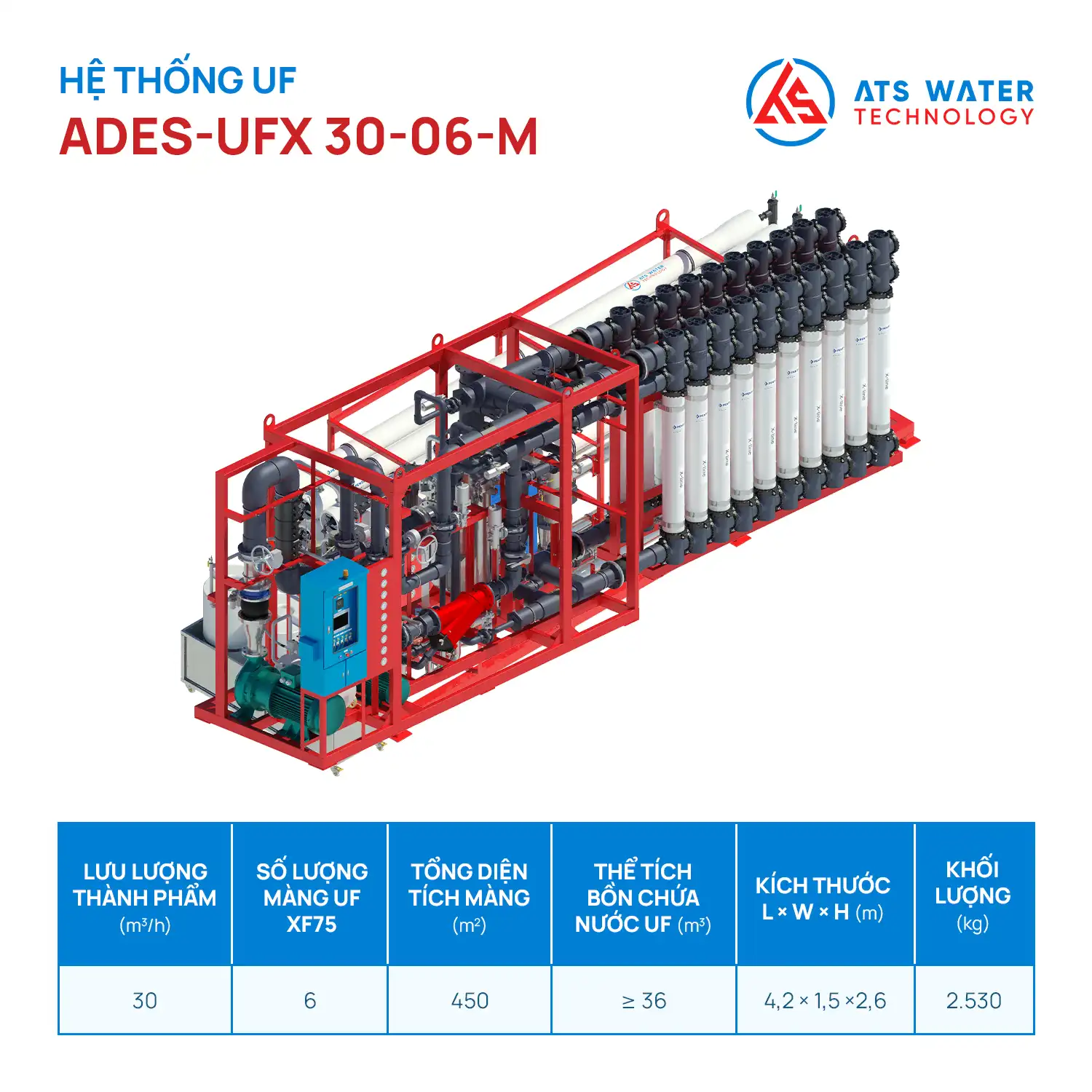

ADES X-LINE UF system
Using state of art technology and decades of expertise and experience, we has built a robust and reliable Pressurized Ultrafiltration (UF) system for the challenging markets.
Features
- Using X-Flow UF hollow fiber membranes with a filtration size of 0.02 µm and inside-out filtration technology allows for deep filtration and effective removal of: suspended solids, turbidity, bacteria, viruses, and other contaminants in water.
- The system operates fully automatically and is easy to maintain.
- Saves labor costs and installation time for contractors.
- Permeate quality: typically SDI <3, turbidity <0.1 NTU.
- Membrane filtration reduces 99.9999% (LOG6) of bacteria (Pseudomonas diminuta) and 99.99% (LOG4) of viruses through mechanical means.
See more
Specifications
-
Capacity
2 – 120 m³/h
-
UF Membrane
X-Flow XF 75 (Pentair-USA)
-
Technology
Hollow fiber membrane with inside-out filtration
-
Filtration size
0.02 μm (20 nm)
See more
In this system, ATS uses the established UF modules from Pentair X-Flow. The 0.8mm PES hollow fiber membranes in the modules have a tight pore size of 20nm and can produce excellent and superior effluent quality that conventional sand and multimedia filters cannot achieve. The membranes can operate at high fluxes at low energy compared with other membranes and effectively remove bacteria, viruses and other microorganisms from the water.
STANDARD FEATURES
- Feed & Backwash pump with IE3, IP55 motor
- UF modules (Inside out PES/PVP) UF casing PVC
- 200 micron Manual strainer for Feed and Backwash line
- Schedule 80 PVC piping
- PLC & HMI 9″ control panel
- SS400 powder coated IP54 enclosure
- Pressure Transducers
- Liquid filled pressure gauges (panel mount)
- Automatic control with pneumatic butterfly valves
- Manual valves & accessories
- Flow meters
- Chemical enhanced backwash (CEB) dosing system (excludes CEB tank)
- Air compressor for valve control
- SS400 with 3 layers epoxy coated steel skid frame
- Connection with JIS-10K Flange
- 380-415V/3Ph/50Hz power supply
AVAILABLE OPTIONS
- Membrane cleaning skid (CIP)
- pH adjustment
- Online turbidity monitor
- Feed & backwash pump VFD
- Filtrate (backwash) tank (PE, SUS304, FRP)
- Materials for Sea water filtration
- DIN/ANSI Flange Connection
OPERATION
- Operating pressure: 0.2-2bar
- Max. operating pressure: 3bar
- Control: automatic Hydraulic Clean (HC) and Chemical Enhanced Backwash (CEB)
UF MEMBRANE CHARACTERISTICS
- Membrane surface area: 75m2
- Hydrophilic membrane composed of a blend of polyvinylpyrrolidone and polyethersulfone
- A nominal pore size of 20nm
- Structure asymmetric/microporous
- High performance with an excellent anti-fouling behavior
- Typical permeate quality SDI<3, turbidity<0,1 NTU
- Membrane filtration provides 99.9999% (LOG6) reduction of bacteria (Pseudomonas diminuta) and 99.99% (LOG 4) reduction of virus (MS2 coliphages) by mechanical means. EPA Est. No. 090374-NLD-001
FEED WATER QUALITY
- Turbidity: < 5NTU
- TSS: < 10mg/L
- TOC: < 2mg/L
- COD: < 1mg/L
- Hardness <150mg/L as CaCO3
- Alkalinity <300mg/L as CaCO3
- pH 6-9 (2-12 for cleaning)
- Temperature 25°C (max. 40°C)
- Oil & grease < 0.1ppm
- Cl2 : 200-500 ppm for cleaning
- Backwash frequency 20-120 minutes
The system is designed for city water applications or similar. Contact ATS Water Technology for other water quality.
APPLICATIONS OF THE ADES X-LINE SYSTEM
- Pretreatment Process for RO System Protection
- Drinking Water Treatment
- Specially designed for municipal tap water or water supply within buildings.
